PartSens 4.0

Portable Surface Particle Counter

Product Description

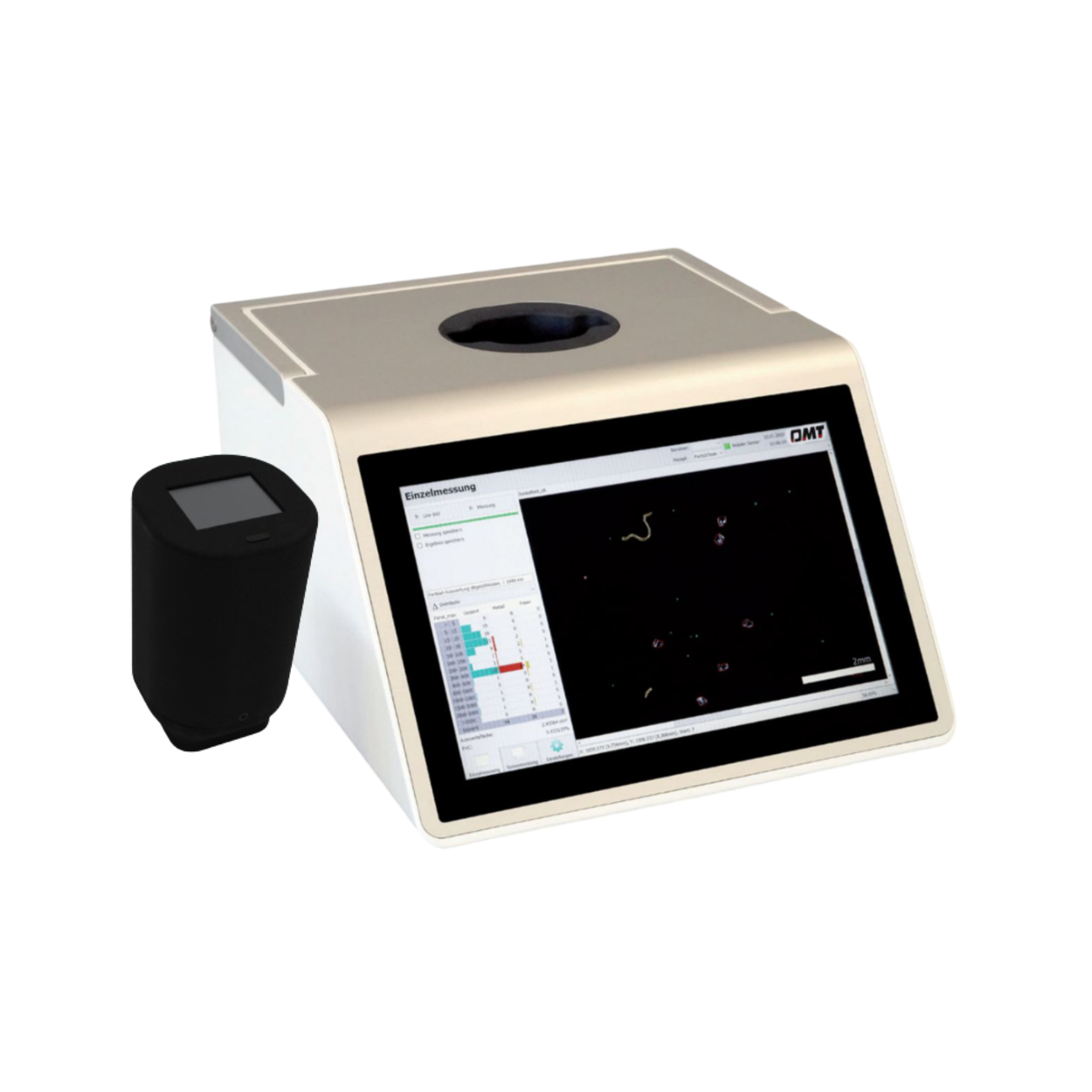

The PartSens 4.0

is a portable surface particle measurement system according to ISO 16232, VDA 19 and ISO 14644-9. Using a wireless measurement head, particles can be measured directly on surfaces, eliminating the need for complex and error-prone sampling methods such as rinsing or filter analysis.
The PartSens+ 4.0 additionally distinguishes between metallic and non-metallic particles as well as fibers. Measurement results are shown in real-time with live imaging on the 12.1" TFT touchscreen and can be stored for later comparison.
The device is designed for production, cleanroom monitoring, and quality control. It delivers highly accurate and reproducible results in less than 10 seconds while offering maximum mobility and ease of use.

Technical Specification

The measuring range covers < 5 µm to > 3000 µm. The channel classification includes twelve particle size ranges from < 5 µm to > 3000 µm. The PartSens+ 4.0 model provides additional classification into metallic/non-metallic particles and fibers above > 50 µm.
The active measuring area is 2.68 cm², while the camera area is 19.36 × 13.82 mm. Measurement time is less than 10 seconds. Results are displayed on a 12.1" touchscreen, with storage capacity for up to 300 measurements. Data can be exported via USB, HDMI, and TCP/IP network.
The system communicates via WLAN (2.4 GHz) and includes visual alarm functions. The wireless measurement head operates within a 10-meter range.
Battery operation allows up to 6 hours runtime, with power supplied by 24 VDC @ 5 A or AC adapter. The base unit measures 210 × 386 × 330 mm, the sensor head 110 × 65 × 65 mm. The total weight is 7.7 kg including batteries.
The instrument complies with ISO 14644-9, ISO 16232 and VDA 19 Part 2.
