Transducer UVATP

The Transducer UVATP is available throughout Austria from Industrie Automation Graz, IAG.

Transmitter UVATP - for measuring the gas mass flow with sensors VA TP DN Exactflow II

Product Description

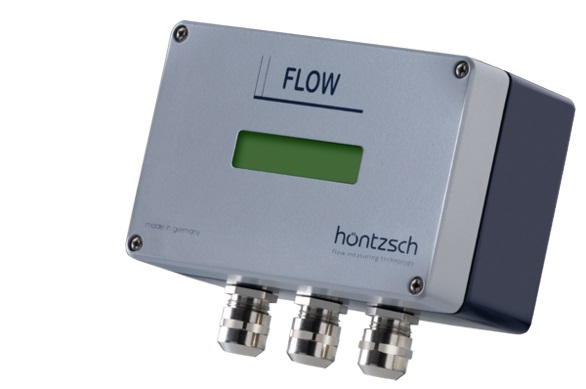

Transducer UVATP

In combination with vortex measuring tubes VA TP DN Exactflow II. For measuring gas mass flow, standard flow rate, working pressure and temperature.

Output signals:

  • 2x analog outputs 4-20 mA: 1x „short time constant”, 1x ‘high precision’
  • gas mass pulse or limit value (configurable)
  • interface RS232
  • Parameter setting via RS232 interface with UCOM VTP software and programming adapter in light metal housing

Technical Specification

Features for Transducer UVATP:

  • Measuring range: UVATP – for measuring mass flow rate with sensors VA TP DN Exactflow
  • Displayed indicators: mass flow rate [kg/h], standard flow rate [Nm³/h], actual flow rate [m³/h], temperature [°C], pressure [hPa], volume/quantity [m³]
  • IP protection type: IP65
  • Sensor input: v/VA; t/PT100; p/4...20 mA
  • Sensor output: analog output, proportional gas mass flow 4 … 20 mA, relais for limit value or quantity pulse, vortex output through BNC connector
