PMT® High pressure diffuser

Portable Surface Particle Counter

Product Description

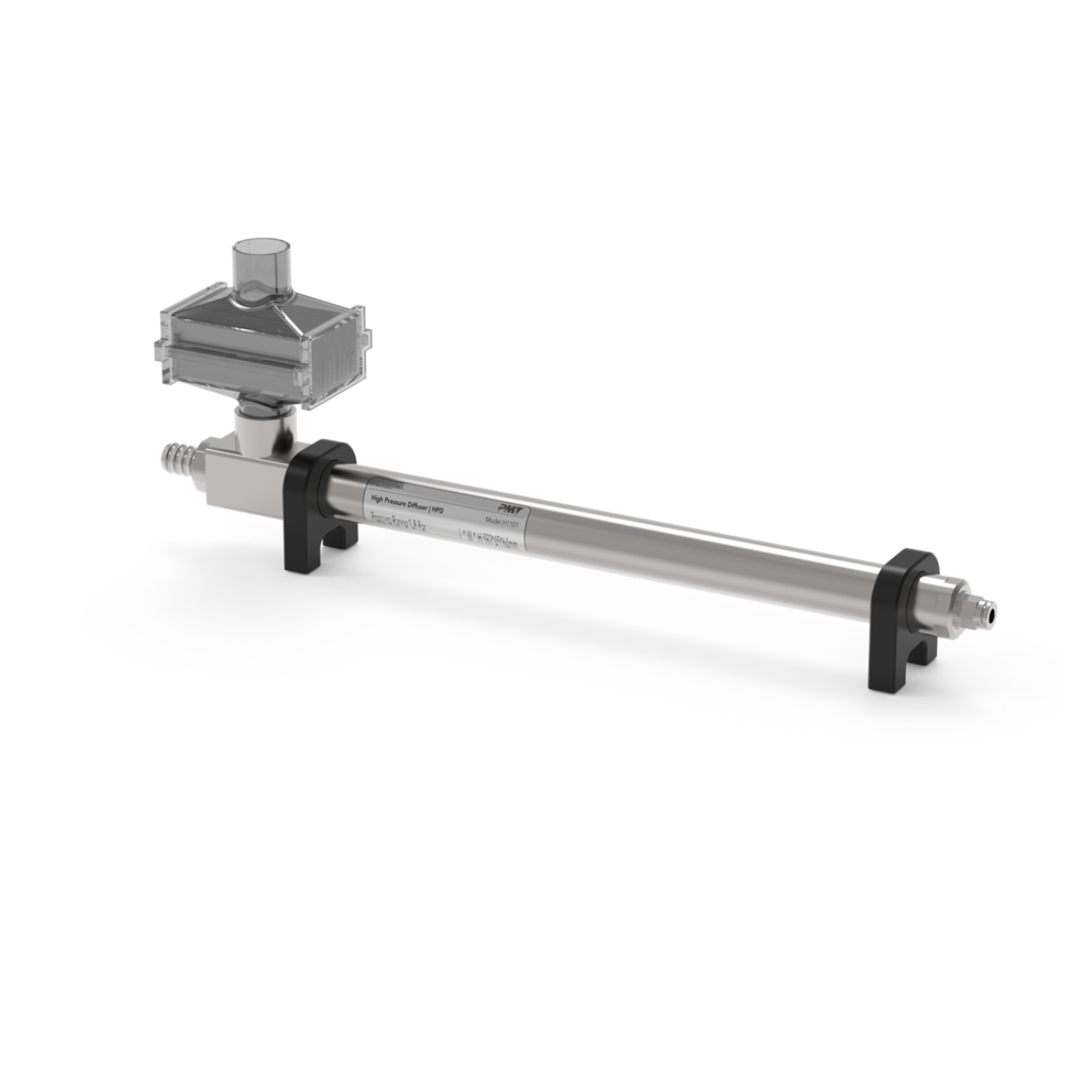

The PMT® High Pressure Diffuser

 enables real-time decompression of compressed gases to atmospheric pressure and reliably delivers them to the connected sampling device. It is suitable for various gases, including air, N₂, CO₂, O₂, Ar, and other inert gases.

With flow rates of 100 L/min, 50 L/min, or 28.3 L/min, the diffuser offers high flexibility for different applications. The inlet pressure range of 1.5 to 8 bar covers a wide variety of operating conditions. Thanks to its durable 316L stainless-steel housing and nitrile O-ring, it ensures long service life and consistent performance.

Compact dimensions of 138 × 59 × 394 mm and a weight of only 0.89 kg make the diffuser easy to integrate. An integrated HEPA filter provides additional protection. With an operating temperature range of 5 to 35 °C and a 24-month warranty, the HPD is ideal for demanding industrial applications requiring accurate decompression and continuous gas supply

Technical Specification

The High Pressure Diffuser is suitable for air, N₂, CO₂, O₂, Ar, and other inert gases. It offers flow rates of 100 L/min, 50 L/min, and 28.3 L/min with an inlet pressure range of 1.5 to 8 bar. The inlet tube has an outer diameter of 8 mm, and the outlet tube an inner diameter of 10 mm or 14 mm.

The housing is made of 316L stainless steel, and the O-ring is nitrile rubber. Dimensions are 138 × 59 × 394 mm (5.43 × 2.32 × 15.51 inches, including HEPA filter), and the weight is 0.89 kg (1.97 lbs).

Operating conditions range from 5–35 °C with 5–90% relative humidity, and storage conditions from 0–40 °C with up to 95% relative humidity. The warranty period is 24 months.
